Example: Cross-Sovereign Revocation Propagation

This example proves the v0.11 trust-withdrawal path across sovereign boundaries. Sovereign A accepts a membership attestation issued by Sovereign B through an active recognition treaty. Later, Sovereign B revokes that attestation and publishes a signed revocation feed. Sovereign A imports the feed and rejects the same attestation without revoking the treaty itself.

        sequenceDiagram
    participant B as Sovereign B
    participant A as Sovereign A
    participant F as Signed Revocation Feed
    participant G as Recognition Graph

    B->>B: Issue MembershipAttestation for Alice
    A->>A: Activate RecognitionTreaty for Sovereign B
    B-->>A: Present attestation
    A-->>B: accepted through treaty
    B->>F: Publish feed revoking attestation
    A->>A: Verify feed under treaty subject key
    A->>A: Import revoked attestation ID
    B-->>A: Present same attestation
    A-->>B: rejected: attestation_locally_revoked
    A->>G: Export graph with propagated revocation

What This Proves

  • The issuer sovereign controls withdrawal of its own attestations.

  • The accepting sovereign can import revocation state without removing the broader recognition treaty.

  • Imported revocations affect treaty-backed attestation verification.

  • The recognition graph exposes propagated revoked trust material.

  • Stale feed imports are rejected by sequence number.

Live Recording

Cross-sovereign revocation propagation demo

Static screenshot:

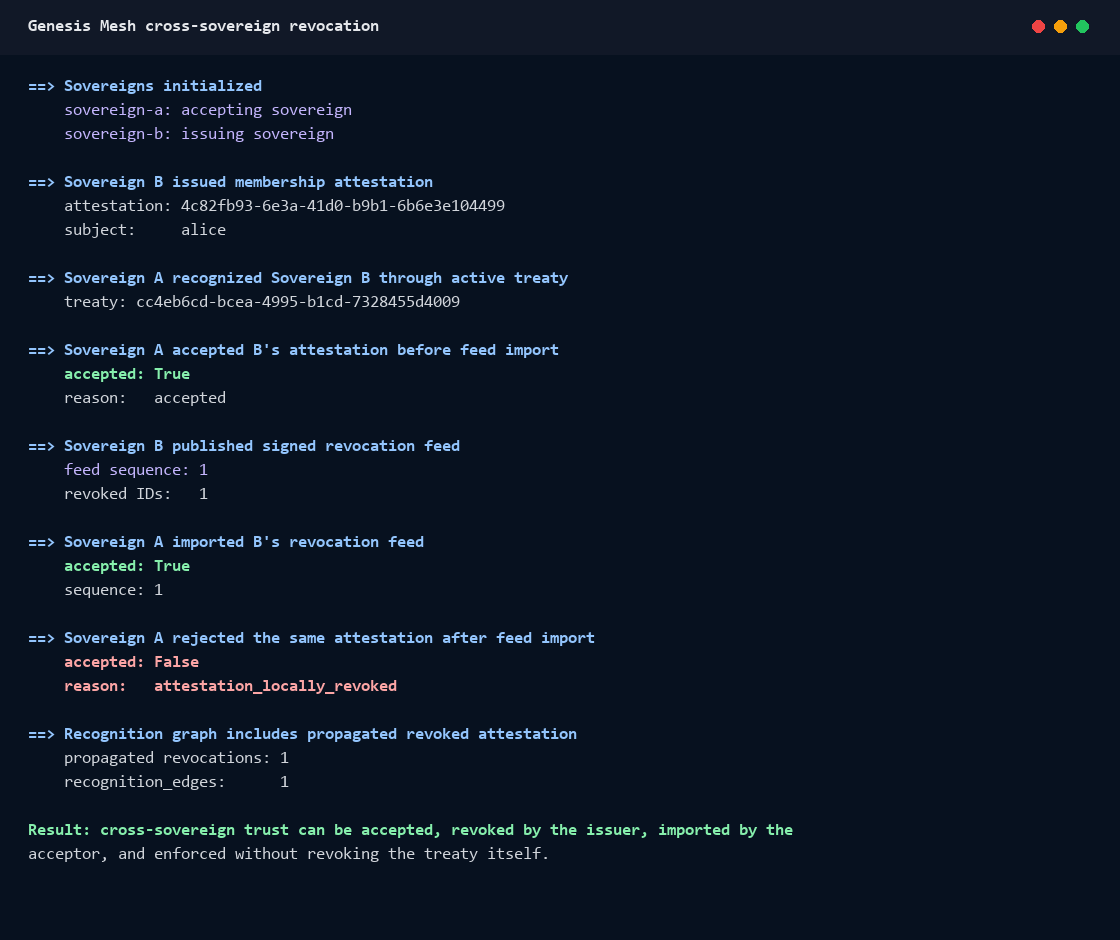

Static screenshot of the cross-sovereign revocation demo

Run

From the repository root:

python docs\examples\assets\scripts\cross-sovereign-revocation-demo.py

The script creates two temporary Network Authority instances in process:

  • sovereign-a: the accepting sovereign

  • sovereign-b: the issuing sovereign

No persistent state or external network is required.

Expected Proof

==> Sovereign B issued membership attestation
    attestation: <attestation-id>
    subject:     alice

==> Sovereign A recognized Sovereign B through active treaty
    treaty: <treaty-id>

==> Sovereign A accepted B's attestation before feed import
    accepted: True
    reason:   accepted

==> Sovereign B published signed revocation feed
    feed sequence: 1
    revoked IDs:   1

==> Sovereign A imported B's revocation feed
    accepted: True
    sequence: 1

==> Sovereign A rejected the same attestation after feed import
    accepted: False
    reason:   attestation_locally_revoked

==> Recognition graph includes propagated revoked attestation
    propagated revocations: 1
    recognition_edges:      1

Operational Meaning

A recognition treaty says “this sovereign may issue trust material I am willing to evaluate.” A revocation feed says “the issuer has withdrawn this specific piece of trust material.”

Those are intentionally separate. Sovereign A can continue recognizing Sovereign B for future attestations while rejecting the revoked attestation immediately after importing B’s signed feed.

API Surfaces

The demo exercises these v0.11 endpoints:

  • GET /sovereign-revocation-feed

  • POST /admin/sovereign-revocation-feeds/import

  • POST /attestations/verify-with-treaty

  • GET /recognition-graph

Verification

Focused tests:

python -m pytest `
  genesis_mesh\tests\test_recognition_treaties.py `
  genesis_mesh\tests\test_na_treaties.py `
  -q

Expected result:

18 passed
