Quick Start

This guide creates a local Genesis Mesh development network through the high-level genesis-mesh command. The command is organized around the three people who operate the system: an operator who runs the Network Authority, a node operator who joins the mesh, and a developer who wants a local smoke test.

        flowchart TD
    init["genesis-mesh init"]
    na["genesis-mesh na start"]
    invite["genesis-mesh admin invite"]
    join["genesis-mesh join"]
    status["genesis-mesh status"]
    dev["genesis-mesh dev up"]

    init --> na
    na --> invite
    invite --> join
    join --> status
    init --> dev

Prerequisites

Install the package in editable mode so the genesis-mesh console command is available:

python -m pip install -r requirements.txt
python -m pip install -e .

On Windows Git Bash, user-level Python installs commonly put console scripts under %APPDATA%\Python\Python314\Scripts, which Git Bash may not have on PATH. Prefer using the project virtual environment:

source .venv/Scripts/activate
python -m pip install -e .
genesis-mesh --help

Or add the user script directory to the current Git Bash session:

export PATH="$HOME/AppData/Roaming/Python/Python314/Scripts:$PATH"
genesis-mesh --help

Operator Workflow

Initialize local keys, a signed genesis block, and genesis-mesh.toml:

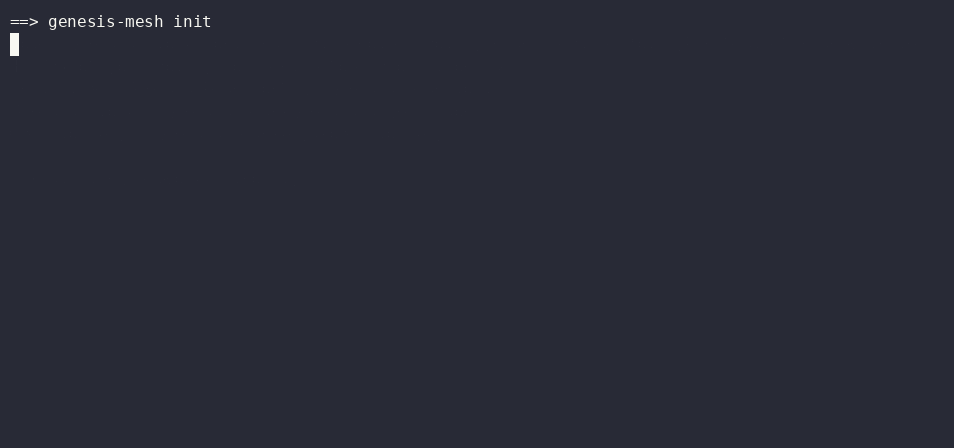

genesis-mesh init

If you previously ran genesis-mesh dev down, run genesis-mesh init again before genesis-mesh na start; dev down removes the local config and generated artifacts.

Start the Network Authority from that config:

genesis-mesh na start

The command is blocking. Open http://127.0.0.1:8443/ in a browser to see the Network Authority landing page with links to health, policy, CRL, and node routes. Keep the server running in one terminal, then create an invite token from another terminal:

INVITE_TOKEN=$(genesis-mesh admin invite --role anchor)

PowerShell equivalent:

$INVITE_TOKEN = genesis-mesh admin invite --role anchor

The invite controls the node’s roles and maximum certificate validity. The Network Authority assigns roles from the invite and ignores client-supplied roles during /join.

Node Operator Workflow

Join the mesh with one command:

genesis-mesh join --na http://127.0.0.1:8443 --token "$INVITE_TOKEN"

PowerShell:

genesis-mesh join --na http://127.0.0.1:8443 --token $INVITE_TOKEN

join enrolls the node, saves the join certificate and active policy, writes the config, and keeps future commands from repeating genesis and bootstrap paths. Add --persistent when you want the peer runtime to stay running after enrollment:

genesis-mesh join --na http://127.0.0.1:8443 --token "$INVITE_TOKEN" --persistent

Invite tokens are single-use. If you already joined once and only want to start the persistent runtime, reuse the saved local certificate and omit the token:

genesis-mesh join --na http://127.0.0.1:8443 --persistent

Running that command in two terminals with the same genesis-mesh.toml starts two runtimes for the same node identity. The Network Authority will still show one active node because both processes use the same node key and certificate. Use a separate config/home directory for each local node when testing multiple identities.

Check local status:

genesis-mesh status

status uses the config to show Network Authority health and local node certificate information.

The local init workflow intentionally creates no peer bootstrap anchors. The Network Authority HTTP API is not a peer WebSocket endpoint. Add a bootstrap anchor only when you have another Genesis Mesh node listening on its peer runtime port.

Developer Workflow

Run the in-process smoke workflow:

genesis-mesh dev up

This starts a local Network Authority in process, creates operator-authenticated invite tokens, enrolls nodes, fetches policy, and validates node status.

Clean local generated artifacts created by genesis-mesh init:

genesis-mesh dev down

Stop genesis-mesh na start and any persistent node runtime before running dev down. On Windows, SQLite keeps .genesis-mesh/na.db locked while the Network Authority process is running.

Config Files

By default, commands look for config in this order:

  1. --config <path>

  2. GENESIS_MESH_CONFIG

  3. ./genesis-mesh.toml

  4. ~/.genesis-mesh/config.toml

The config stores the Network Authority endpoint, genesis path, key paths, certificate path, and policy path. Private keys and generated databases must not be committed. Local CLI output is ignored by default through genesis-mesh.toml, .genesis-mesh/, keys/, and SQLite database patterns.

Roles

  • role:anchor: gateway or relay node.

  • role:bridge: edge resiliency node.

  • role:client: endpoint node.

  • role:operator: policy or administrative operator.

  • role:service:<name>: service-specific identity.

Role arguments accept either anchor or role:anchor; the CLI normalizes the short form.

Security Notes

  • Keep Root Sovereign private keys offline outside local demos.

  • Keep NA private keys inside the NA process, a secret manager, or an HSM.

  • Use separate operator keys for admin API calls.

  • Treat invite tokens as secrets; they are single-use enrollment credentials.

  • Keep system time synchronized because certificates and admin signatures are time-bound.

Troubleshooting

genesis-mesh is not found

Install the package in editable mode:

python -m pip install -e .

Then reopen the shell or activate the virtual environment that installed it. On Windows user installs, Python may place scripts under %APPDATA%\Python\Python314\Scripts; add that directory to PATH if pip warns that installed scripts are not available.

Node cannot join

  • Confirm genesis-mesh na start is still running.

  • Confirm the URL passed to --na matches the Network Authority endpoint.

  • Confirm the invite token exists, is unused, and has not expired.

  • Check Network Authority logs for /join errors.

Genesis block signature verification fails

Run:

genesis-mesh genesis verify --genesis .genesis-mesh/genesis.signed.json

Confirm the genesis block was not edited after signing.
