Federation Bootstrap And Trust Bundle Exchange

This example shows the operator-onboarding path introduced across the v0.17.2 and v0.17.3 readiness releases. It packages another sovereign’s public trust material, validates it, records a local review receipt, and feeds the bundle into federation bootstrap without granting trust automatically.

The example uses the live Azure and DigitalOcean Network Authorities:

Role

Sovereign

Endpoint

Acceptor

USG

https://na.genesismesh.connectorzzz.com

Issuer

USG-NB

http://164.92.250.135:8443


        sequenceDiagram
    participant NB as USG-NB Trust Bundle
    participant OP as Operator CLI
    participant AZ as USG Network Authority

    OP->>NB: export public trust material
    OP->>OP: inspect bundle offline
    OP->>NB: validate bundle against live endpoint
    OP->>OP: import bundle as review evidence
    OP->>AZ: bootstrap federation with --issuer-bundle
    AZ-->>OP: dry-run treaty preview

What This Proves

  • A sovereign can package public trust material into one reviewable JSON file.

  • The receiving operator can inspect the bundle offline.

  • Live validation catches stale or mismatched bundle material before a treaty is issued.

  • trust-bundle import records review evidence but does not grant trust.

  • federation bootstrap --issuer-bundle uses the bundle to seed review while still requiring explicit operator signing for real trust.

Live Recording

Federation bootstrap and trust bundle exchange workflow

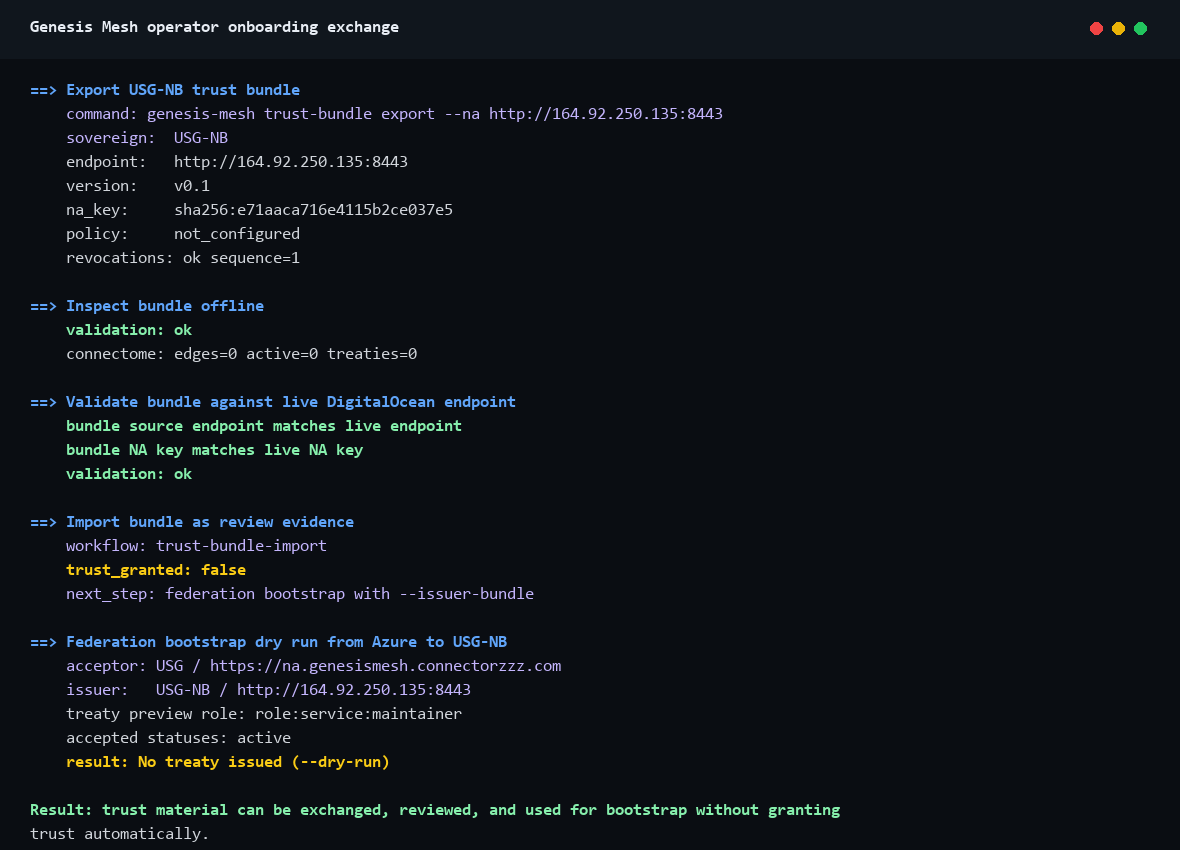

Static screenshot:

Static screenshot of trust bundle exchange and federation bootstrap

Run

Generate the documentation assets from the captured transcript:

python docs\examples\assets\scripts\operator-onboarding-exchange-demo.py

Run the non-mutating live smoke against Azure and DigitalOcean:

python docs\examples\assets\scripts\operator-onboarding-exchange-demo.py --live

Live mode runs only public export, inspect, validate, review-import, and federation dry-run steps. It does not issue a treaty.

The equivalent CLI workflow is:

$BUNDLE = "$env:TEMP\usg-nb-trust-bundle.json"
$RECEIPT = "$env:TEMP\usg-nb-trust-bundle-receipt.json"

genesis-mesh trust-bundle export `
  --na http://164.92.250.135:8443 `
  --output $BUNDLE

genesis-mesh trust-bundle inspect --bundle $BUNDLE

genesis-mesh trust-bundle validate `
  --bundle $BUNDLE `
  --na http://164.92.250.135:8443

genesis-mesh trust-bundle import `
  --bundle $BUNDLE `
  --na http://164.92.250.135:8443 `
  --output $RECEIPT

genesis-mesh federation bootstrap `
  --acceptor https://na.genesismesh.connectorzzz.com `
  --issuer-bundle $BUNDLE `
  --dry-run

To issue real trust after review, replace --dry-run with the acceptor operator signing options and an explicit --yes.
